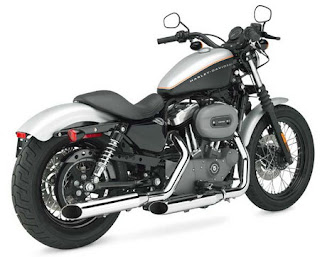

2011 Harley Davidson XL 1200N Nightster is one motorcycle issued by the manufacturer Harley Davidson with tour edition which supported the body design is comfortable to use for touring. 2011 Harley Davidson XL 1200N Nightster has a capacity of 1200 cc engine with a ratio of bore x stroke 88.9 mm x 96.8 mm. For the type of engine that is Engine3 Air-cooled, Evolution® Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder.
2011 Harley-Davidson XL 1200N Nightster - USA Specifications
U.S. MSRP - Vivid Black $9,999. Solids $10,289. Two-Tones $10,499. Custom Colors $10,669
DIMENSIONS
Length 85.8 in. (2179 mm)
Overall Width 36.4 in. (925 mm)
Overall Height 43.6 in. (1107 mm)
Seat Height:
• Laden2 25.7 in. (653 mm)
• Unladen 26.9 in. (683 mm)
Ground Clearance 3.9 in. (99 mm)
Rake (steering head) 30.4°
Fork Angle 30.4°
Trail 4.6 in. (117 mm)
Wheelbase 59.8 in. (1519 mm)
Tires (Dunlop® Harley-Davidson Series, blackwall):
• Front – D401F 100/90-19 57H
• Rear – D401 150/80B16 71H
Fuel Capacity 3.3 gal. (12.5 L) (warning light at approximately 0.8 gal.)
Oil Capacity (w/filter) 2.8 qts. (2.6 L)
Transmission Capacity 1.0 qts.
Weight:
• As Shipped 545 lbs. (247.2 kg)
• In Running Order 562 lbs. (254.9 kg)
• Gross Vehicle Weight Rating 1000 lbs. (453.6 kg)
• Gross Axle Weight Rating
• Front 335 lbs. (152.0 kg)
• Rear665 lbs. (301.6 kg)
ENGINE
Engine3 Air-cooled, Evolution®
Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Bore x Stroke 3.5 in. x 3.812 in. (88.9 mm x 96.8 mm)
Displacement 73.3 cu. in. (1200 cc)
Compression Ratio 9.7:1
Fuel System3 Electronic Sequential Port Fuel Injection (ESPFI)
Air Cleaner Paper cartridge type
Lubrication System Dry-sump
DRIVETRAIN
Primary Drive Chain, 57/38 ratio
Final Drive Belt, 68/29 ratio
Clutch Multi-plate, wet
Transmission 5-speed
U.S. Gear Ratios (overall):
• 1st 9.315
• 2nd 6.653
• 3rd 4.948
• 4th 4.102
• 5th 3.517
CHASSIS
Frame Mild steel, tubular frame; circular sections; cast junctions
Swingarm Mild steel, rectangular tube section, stamped junctions; MIG welded
Front Forks 39 mm
Rear Shocks Coil-over; preload dual-adjustable
Wheels4: Black, Laced Steel
• Front 19 in. x 2.5 in. (483 mm x 64 mm)
• Rear 16 in. x 3 in. (406 mm x 76 mm)
Brakes:
• Caliper Type Dual-piston front, single-piston rear
• Rotor Type (diameter x width): Patented, uniform expansion rotors
• Front 11.5 in. x .2 in. (292 mm x 5 mm)
• Rear 10.24 in. x .28 in. (260 mm x 7 mm)
Suspension Travel:
• Front Wheel 3.62 in. (92 mm)
• Rear Wheel 1.63 in. (41 mm)
PERFORMANCE
Engine Torque5 (per SAE J1349):
• North America 79 ft. lbs. @ 4000 RPM (107 Nm @ 4000 RPM)
Lean Angle:
• Right 29°
• Left 30°
Fuel Economy6
(EPA urban/highway test)
42/57 mpg (5.60/4.13 L/100 km)
ELECTRIC
Battery (per Battery Council International Rating)
Sealed, maintenance-free, 12V, 12-amp/hour, 200 cca
Charging Single-phase, 30-amp system (357W @ 13.5V, 2000 RPM, 405W max power @ 13.5V)
Starting 1.2 kW electric with solenoid shift starter motor engagement
Lights (as per country regulation):
• Headlamp (quartz halogen) 55-watt low beam, 60-watt high beam
• Tail/Stop Lights 8W/28W per lamp
• Turn Signal Lights 28W self-canceling
• Rear Tail/Stop/Turn Signal Lights 8W/28W per lamp
• Indicator Lamps - High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, low battery, security system7 (optional)
COLOR OPTIONS
Solids
• Vivid Black
• Cool Blue Pearl
Two-Tones
• Scarlet Red/Vivid Black
Custom Colors
• Psychedelic Purple/
Vivid Black
• Apple Green/Vivid Black
WARRANTY
Warranty8 24 months (unlimited mileage)
Service Interval First 1,000 miles (1,600 km), every 5,000 miles (8,000 km) thereafter
1 Vehicles depicted may differ from vehicles manufactured and delivered.
Specifications and prices listed may differ from specifications and prices
of vehicles manufactured and delivered. All product descriptions (including
depictions, specifications, dimensions, measurements, ratings and competitive
comparisons) are based on available information at the time of publication.
Although such descriptions are believed correct, errors and changes can
occur and complete accuracy cannot be guaranteed. Harley-Davidson may
make changes at any time to prices and specifications, and may change
or discontinue models, without notice and without incurring any obligation.
Attention: Vehicles in the configurations shown and many of the accessories
described in this catalog may not be available for sale or use in some locations.
Please check with your dealer for complete product details and the latest
information. All models feature 6-speed transmission (VRSC™ models and
Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate
clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.
2 Measurement reflects 180 lb. (81.7 kg) operator weight.
3 Recommended 91 octane or higher fuel (R+M)/2.
4 Standard and optional wheels may vary by country and region.
5 Values shown are nominal. Performance may vary by country and region.
6 Estimated from fuel economy tests on a sample motorcycle from the
corresponding family conducted by Harley-Davidson under ideal laboratory
conditions. Not all motorcycle models undergo fuel economy testing. Fuel
economy and mileage may vary among motorcycle models within a family. Your
mileage may vary depending on your personal riding habits, weather conditions,
trip length, vehicle condition and vehicle configuration and other conditions.
Break-in mileage may vary.
7 North America security system includes immobilizer; outside North America the
security system includes immobilizer and siren.
8 See motorcycle owner’s manual for complete details.
2011 Harley-Davidson XL 1200N Nightster - Canada Specifications
Canadian MSRP - See your local retailer for pricing information.
DIMENSIONS
Metric Units
Length 2245 mm
Seat Height
Laden 1
Unladen 1 725 mm
Ground Clearance 130 mm
Rake Steering Head
Trail 117 mm
Wheelbase 1510 mm
Fuel Capacity 12.5 L
Oil Capacity 2.65 L
Weight
Dry Weight 251 kg
Running Order 260 kg
Luggage Capacity
Volume
Weight
POWERTRAIN
Engine 2 Air-cooled, Evolution®Air-cooled, Evolution®
Displacement 1202 cc
Bore x Stroke in. / in.88.9 mm / 96.8 mm
Engine Torque J1349
Engine Torque 3 ft. lbs. @ rpm107 Nm @ 3250 rpm
Fuel System 4 Electronic Sequential Port Fuel Injection (ESPFI)Electronic Sequential Port Fuel Injection (ESPFI)
Compression Ratio 9.7:1
Primary Drive Chain, 38/57 ratioChain, 38/57 ratio
Fuel Economy
Fuel Economy City 5 5.6 l/100km
Fuel Economy Hwy 5 4.13 l/100km
Gear Ratio (Overall)
1st 9.314
2nd 6.655
3rd 4.949
4th 4.101
5th 3.518
6th
WHEELS / TIRES
Wheels
Front 6 Black, Laced SteelBlack Steel Laced
Wheel Option 6
Rear 6 Black, Laced SteelBlack Steel Laced
Tire Size
Front
Rear
ELECTRICAL
Instruments Handlebar-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, low fuel warning light, low oil pressure light, engine diagnostics readout, LED indicator lightsHandlebar-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, low fuel warning light, low oil pressure light, engine diagnostics readout, LED indicator lights
Indicator Lamps 7 High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, low battery, security system (optional)High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, low battery, security system (optional)
CHASSIS
Brakes Dual-piston front, single-piston rearDual-piston front, single-piston rear
Parking Brake
Lean Angle
Exhaust System Chrome, staggered shorty exhaust with dual mufflersChrome, staggered shorty exhaust with dual mufflers
COLOR OPTIONS
Vivid Black
Cool Blue Pearl
Scarlet Red / Vivid Black
Psychadelic Purple / Vivid Black
Apple Green / Vivid BlackVivid Black
Cool Blue Pearl
Scarlet Red / Vivid Black
Psychadelic Purple / Vivid Black
Apple Green / Vivid Black
1 Measurement reflects 180 lb. (81.7 kg) operator weight.
2 Recommended 91 octane or higher fuel (R+M)/2.
3 Values shown are nominal. Performance may vary by country and region.
4 Standard and optional fuel systems may vary by country.
5 Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
6 Standard and optional wheels may vary by country and region.
7 North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
8 See motorcycle owner's manual for complete details.
Vehicles depicted may differ from vehicles manufactured and delivered. Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered. All product descriptions (including depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication. Although such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed. Harley-Davidson may make changes at any time to prices and specifications, and may change or discontinue models, without notice and without incurring any obligation. Attention: Vehicles in the configurations shown and many of the accessories described in this catalog may not be available for sale or use in some locations. Please check with your dealer for complete product details and the latest information. All models feature 6-speed transmission (VRSC™ models and Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.
U.S. MSRP - Vivid Black $9,999. Solids $10,289. Two-Tones $10,499. Custom Colors $10,669
DIMENSIONS
Length 85.8 in. (2179 mm)
Overall Width 36.4 in. (925 mm)
Overall Height 43.6 in. (1107 mm)
Seat Height:
• Laden2 25.7 in. (653 mm)
• Unladen 26.9 in. (683 mm)
Ground Clearance 3.9 in. (99 mm)
Rake (steering head) 30.4°
Fork Angle 30.4°
Trail 4.6 in. (117 mm)
Wheelbase 59.8 in. (1519 mm)
Tires (Dunlop® Harley-Davidson Series, blackwall):
• Front – D401F 100/90-19 57H
• Rear – D401 150/80B16 71H
Fuel Capacity 3.3 gal. (12.5 L) (warning light at approximately 0.8 gal.)
Oil Capacity (w/filter) 2.8 qts. (2.6 L)
Transmission Capacity 1.0 qts.
Weight:
• As Shipped 545 lbs. (247.2 kg)
• In Running Order 562 lbs. (254.9 kg)
• Gross Vehicle Weight Rating 1000 lbs. (453.6 kg)
• Gross Axle Weight Rating
• Front 335 lbs. (152.0 kg)
• Rear665 lbs. (301.6 kg)
ENGINE
Engine3 Air-cooled, Evolution®
Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Bore x Stroke 3.5 in. x 3.812 in. (88.9 mm x 96.8 mm)
Displacement 73.3 cu. in. (1200 cc)
Compression Ratio 9.7:1
Fuel System3 Electronic Sequential Port Fuel Injection (ESPFI)
Air Cleaner Paper cartridge type
Lubrication System Dry-sump
DRIVETRAIN
Primary Drive Chain, 57/38 ratio
Final Drive Belt, 68/29 ratio
Clutch Multi-plate, wet
Transmission 5-speed
U.S. Gear Ratios (overall):
• 1st 9.315
• 2nd 6.653
• 3rd 4.948
• 4th 4.102
• 5th 3.517
CHASSIS
Frame Mild steel, tubular frame; circular sections; cast junctions
Swingarm Mild steel, rectangular tube section, stamped junctions; MIG welded
Front Forks 39 mm
Rear Shocks Coil-over; preload dual-adjustable
Wheels4: Black, Laced Steel
• Front 19 in. x 2.5 in. (483 mm x 64 mm)
• Rear 16 in. x 3 in. (406 mm x 76 mm)
Brakes:
• Caliper Type Dual-piston front, single-piston rear
• Rotor Type (diameter x width): Patented, uniform expansion rotors
• Front 11.5 in. x .2 in. (292 mm x 5 mm)
• Rear 10.24 in. x .28 in. (260 mm x 7 mm)
Suspension Travel:
• Front Wheel 3.62 in. (92 mm)
• Rear Wheel 1.63 in. (41 mm)
PERFORMANCE
Engine Torque5 (per SAE J1349):
• North America 79 ft. lbs. @ 4000 RPM (107 Nm @ 4000 RPM)
Lean Angle:
• Right 29°
• Left 30°
Fuel Economy6
(EPA urban/highway test)
42/57 mpg (5.60/4.13 L/100 km)
ELECTRIC
Battery (per Battery Council International Rating)
Sealed, maintenance-free, 12V, 12-amp/hour, 200 cca
Charging Single-phase, 30-amp system (357W @ 13.5V, 2000 RPM, 405W max power @ 13.5V)
Starting 1.2 kW electric with solenoid shift starter motor engagement
Lights (as per country regulation):
• Headlamp (quartz halogen) 55-watt low beam, 60-watt high beam
• Tail/Stop Lights 8W/28W per lamp
• Turn Signal Lights 28W self-canceling
• Rear Tail/Stop/Turn Signal Lights 8W/28W per lamp
• Indicator Lamps - High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, low battery, security system7 (optional)
COLOR OPTIONS
Solids
• Vivid Black
• Cool Blue Pearl
Two-Tones
• Scarlet Red/Vivid Black
Custom Colors
• Psychedelic Purple/
Vivid Black
• Apple Green/Vivid Black
WARRANTY
Warranty8 24 months (unlimited mileage)
Service Interval First 1,000 miles (1,600 km), every 5,000 miles (8,000 km) thereafter
1 Vehicles depicted may differ from vehicles manufactured and delivered.
Specifications and prices listed may differ from specifications and prices
of vehicles manufactured and delivered. All product descriptions (including
depictions, specifications, dimensions, measurements, ratings and competitive
comparisons) are based on available information at the time of publication.
Although such descriptions are believed correct, errors and changes can
occur and complete accuracy cannot be guaranteed. Harley-Davidson may
make changes at any time to prices and specifications, and may change
or discontinue models, without notice and without incurring any obligation.
Attention: Vehicles in the configurations shown and many of the accessories
described in this catalog may not be available for sale or use in some locations.
Please check with your dealer for complete product details and the latest
information. All models feature 6-speed transmission (VRSC™ models and
Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate
clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.
2 Measurement reflects 180 lb. (81.7 kg) operator weight.
3 Recommended 91 octane or higher fuel (R+M)/2.
4 Standard and optional wheels may vary by country and region.
5 Values shown are nominal. Performance may vary by country and region.
6 Estimated from fuel economy tests on a sample motorcycle from the
corresponding family conducted by Harley-Davidson under ideal laboratory
conditions. Not all motorcycle models undergo fuel economy testing. Fuel
economy and mileage may vary among motorcycle models within a family. Your
mileage may vary depending on your personal riding habits, weather conditions,
trip length, vehicle condition and vehicle configuration and other conditions.
Break-in mileage may vary.
7 North America security system includes immobilizer; outside North America the
security system includes immobilizer and siren.
8 See motorcycle owner’s manual for complete details.
2011 Harley-Davidson XL 1200N Nightster - Canada Specifications
Canadian MSRP - See your local retailer for pricing information.
DIMENSIONS
Metric Units
Length 2245 mm
Seat Height
Laden 1
Unladen 1 725 mm
Ground Clearance 130 mm
Rake Steering Head
Trail 117 mm
Wheelbase 1510 mm
Fuel Capacity 12.5 L
Oil Capacity 2.65 L
Weight
Dry Weight 251 kg
Running Order 260 kg
Luggage Capacity
Volume
Weight
POWERTRAIN
Engine 2 Air-cooled, Evolution®Air-cooled, Evolution®
Displacement 1202 cc
Bore x Stroke in. / in.88.9 mm / 96.8 mm
Engine Torque J1349
Engine Torque 3 ft. lbs. @ rpm107 Nm @ 3250 rpm
Fuel System 4 Electronic Sequential Port Fuel Injection (ESPFI)Electronic Sequential Port Fuel Injection (ESPFI)
Compression Ratio 9.7:1
Primary Drive Chain, 38/57 ratioChain, 38/57 ratio
Fuel Economy
Fuel Economy City 5 5.6 l/100km
Fuel Economy Hwy 5 4.13 l/100km
Gear Ratio (Overall)
1st 9.314
2nd 6.655
3rd 4.949
4th 4.101
5th 3.518
6th
WHEELS / TIRES
Wheels
Front 6 Black, Laced SteelBlack Steel Laced
Wheel Option 6
Rear 6 Black, Laced SteelBlack Steel Laced
Tire Size
Front
Rear
ELECTRICAL
Instruments Handlebar-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, low fuel warning light, low oil pressure light, engine diagnostics readout, LED indicator lightsHandlebar-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, low fuel warning light, low oil pressure light, engine diagnostics readout, LED indicator lights
Indicator Lamps 7 High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, low battery, security system (optional)High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, low battery, security system (optional)
CHASSIS
Brakes Dual-piston front, single-piston rearDual-piston front, single-piston rear
Parking Brake
Lean Angle
Exhaust System Chrome, staggered shorty exhaust with dual mufflersChrome, staggered shorty exhaust with dual mufflers
COLOR OPTIONS
Vivid Black
Cool Blue Pearl
Scarlet Red / Vivid Black
Psychadelic Purple / Vivid Black
Apple Green / Vivid BlackVivid Black
Cool Blue Pearl
Scarlet Red / Vivid Black
Psychadelic Purple / Vivid Black
Apple Green / Vivid Black
1 Measurement reflects 180 lb. (81.7 kg) operator weight.
2 Recommended 91 octane or higher fuel (R+M)/2.
3 Values shown are nominal. Performance may vary by country and region.
4 Standard and optional fuel systems may vary by country.
5 Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
6 Standard and optional wheels may vary by country and region.
7 North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
8 See motorcycle owner's manual for complete details.
Vehicles depicted may differ from vehicles manufactured and delivered. Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered. All product descriptions (including depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication. Although such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed. Harley-Davidson may make changes at any time to prices and specifications, and may change or discontinue models, without notice and without incurring any obligation. Attention: Vehicles in the configurations shown and many of the accessories described in this catalog may not be available for sale or use in some locations. Please check with your dealer for complete product details and the latest information. All models feature 6-speed transmission (VRSC™ models and Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.
0 Comments:
Post a Comment
