Saturday, February 26, 2011

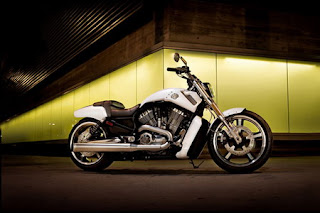

2011 Harley Davidson VRSCF V-Rod Muscle

2011 Harley Davidson VRSCF V-Rod Muscle Review

2011 Harley-Davidson VRSCF V-Rod Muscle is one motorcycle issued by the manufacturer Harley Davidson with VRSC edition which supported the body design is comfortable to use. 2011 Harley-Davidson VRSCF V-Rod Muscle uses Frame Steel perimeter upper frame with hydroformed main rails and bolt-on lower frame rails; MIG welded. And brake use Caliper Type 4-piston front and rear. As for the engine, this motorcycle has a capacity of 1250 cc engine with a ratio of bore x stroke 105 mm x 72 mm. For the type of engine is Engine3 Liquid-cooled, Revolution®, 60° V-Twin, Valves Overhead cam, 4 valves per cylinder, solid tappet with shim-under-bucket lash adjustmentr.

2011 Harley Davidson VRSCF V-Rod Muscle2011 Harley Davidson VRSCF V-Rod Muscle 1

2011 Harley Davidson VRSCF V-Rod Muscle2011 Harley Davidson VRSCF V-Rod Muscle 2

2011 Harley Davidson VRSCF V-Rod Muscle2011 Harley Davidson VRSCF V-Rod Muscle 3

2011 Harley Davidson VRSCF V-Rod Muscle2011 Harley Davidson VRSCF V-Rod Muscle 4

2011 Harley Davidson VRSCF V-Rod Muscle2011 Harley Davidson VRSCF V-Rod Muscle 5

2011 Harley Davidson VRSCF V-Rod Muscle - USA Specifications
U.S. MSRP - Vivid Black $17,199. Color Option $17,499. Two-Tone Option $17,699

DIMENSIONS
Length 92.8 in. (2357 mm)
Overall Width 40.2 in. (1021 mm)
Overall Height 45.7 in. (1161 mm)
Seat Height:
• Laden2 25.6 in. (650 mm)
• Unladen 26.7 in. (678 mm)

Ground Clearance 4.8 in. (122 mm)
Rake (steering head) 34°
Fork Angle 34°
Trail 5.6 in. (142 mm)
Wheelbase 67.0 in. (1702 mm)
Tires (Michelin® Scorcher™ “11” front and rear):
• Front – Scorcher™ “11” 120/70ZR-19 60W
• Rear – Scorcher™ “11” 240/40R-18 79V
Fuel Capacity 5.0 gal. (18.9 L) (warning light at approximately 0.5 gal.)
Oil Capacity (w/filter) 5.0 qts. (4.7 L)
Coolant Capacity 2.5 qts. (2.4 L)
Weight:
• As Shipped 640 lbs. (290.0 kg)
• In Running Order 673 lbs. (305.0 kg)
• Gross Vehicle Weight Rating 1075 lbs. (488.0 kg)
• Gross Axle Weight Rating
• Front 377 lbs. (171.0 kg)
• Rear 698 lbs. (317.0 kg)

ENGINE
Engine3 Liquid-cooled, Revolution®, 60° V-Twin
Valves Overhead cam, 4 valves per cylinder, solid tappet with shim-under-bucket lash adjustment
Bore x Stroke 4.134 in. x 2.835 in. (105 mm x 72 mm)
Displacement 76.28 cu. in. (1250 cc)
Compression Ratio 11.5:1
Fuel System3 Electronic Sequential Port Fuel Injection (ESPFI)
Air Cleaner Down draft intake
Lubrication System Wet-sump, integrated with powertrain crankcase

DRIVETRAIN
Primary Drive Gear, 117/64 ratio
Final Drive Belt, 72/28 ratio
Clutch 9-plate, wet, A&S (Assist & Slip)
Transmission 5-speed
U.S. Gear Ratios (overall):
• 1st 11.752
• 2nd 7.898
• 3rd 6.322
• 4th 5.459
• 5th 4.899

CHASSIS
Frame Steel perimeter upper frame with hydroformed main rails and bolt-on lower frame rails; MIG welded
Swingarm Polished, one-piece cast aluminum Front Forks 43 mm Inverted
Rear Shocks Preload adjustable
Wheels4: Black, 5-Spoke Cast Aluminum
• Front 19 in. x 3 in. (483 mm x 76 mm)
• Rear 18 in. x 8 in. (457 mm x 203 mm)
Brakes:
• Caliper Type 4-piston front and rear
• Rotor Type (diameter x width): Patented, one-piece floating rotor (front), uniform expansion rotor (rear)
• Front (dual) 11.81 in. x .2 in. (300 mm x 5 mm)
• Rear 11.81 in. x .28 in. (300 mm x 7 mm)
• Anti-lock Braking System (option) Available
Suspension Travel:
• Front Wheel 4 in. (102 mm)
• Rear Wheel 2.9 in. (74 mm)

PERFORMANCE
Engine Torque5 (per SAE J1349):
• North America 86 ft. lbs. @ 6500 RPM (117 Nm @ 6500 RPM)
Lean Angle (per SAE J1168):
• Right 32°
• Left 32°
Fuel Economy6
(EPA urban/highway test)
34/42 mpg (6.92/5.60 L/100 km)

ELECTRIC
Battery (per Battery Council International Rating)
Sealed, maintenance-free, 12V, 19-amp/hour, 270 cca
Charging Three-phase, 38-amp system (439W @ 13V, 2000 RPM, 489W max power @ 13V)
Starting 0.08 kW electric with direct drive starter motor engagement
Lights (as per country regulation):
• Headlamp (quartz halogen) 55-watt low beam, 65-watt high beam
• Rear Tail/Stop/Turn Signal Lights Integrated Dual Color LED
• Front Turn Signal Lights Integrated LED
• Indicator Lamps - High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system7 (optional), coolant temperature, low fuel warnings

COLOR OPTIONS
Vivid Black
Brilliant Silver Pearl
Chrome Yellow
White Hot Denim

WARRANTY
Warranty8 24 months (unlimited mileage)
Service Interval First 1,000 miles (1,600 km), every 5,000 miles (8,000 km) thereafter

1 Vehicles depicted may differ from vehicles manufactured and delivered.
Specifications and prices listed may differ from specifications and prices of
vehicles manufactured and delivered. All product descriptions (including depictions,
specifications, dimensions, measurements, ratings and competitive comparisons) are
based on available information at the time of publication. Although such descriptions
are believed correct, errors and changes can occur and complete accuracy cannot
be guaranteed. Harley-Davidson may make changes at any time to prices and
specifications, and may change or discontinue models, without notice and without
incurring any obligation. Attention: Vehicles in the configurations shown and many
of the accessories described in this catalog may not be available for sale or use in
some locations. Please check with your dealer for complete product details and the
latest information. All models feature 6-speed transmission (VRSC™ models and
Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate clutch
with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.
2 Measurement reflects 180 lb. (81.7 kg) operator weight.
3 Recommended 91 octane or higher fuel (R+M)/2.
4 Standard and optional wheels may vary by country and region.
5 Values shown are nominal. Performance may vary by country and region.
6 Estimated from fuel economy tests on a sample motorcycle from the corresponding
family conducted by Harley-Davidson under ideal laboratory conditions. Not all
motorcycle models undergo fuel economy testing. Fuel economy and mileage may
vary among motorcycle models within a family. Your mileage may vary depending
on your personal riding habits, weather conditions, trip length, vehicle condition and
vehicle configuration and other conditions. Break-in mileage may vary.
7 North America security system includes immobilizer; outside North America the
security system includes immobilizer and siren.
8 See motorcycle owner’s manual for complete details.

2011 Harley Davidson VRSCF V-Rod Muscle - Canada Specifications

Canadian MSRP - See your local retailer for pricing information.

DIMENSIONS
Metric Units
Length 2410 mm
Seat Height
Laden 1
Unladen 1 705 mm
Ground Clearance 105 mm
Rake Steering Head
Trail 142 mm
Wheelbase 1700 mm
Fuel Capacity 18.9 L
Oil Capacity 4.7 L
Weight
Dry Weight 292 kg
Running Order 307 kg
Luggage Capacity
Volume
Weight

POWERTRAIN
Engine 2 Liquid-cooled, Revolution®, 60° V-TwinLiquid-cooled, Revolution®, 60° V-Twin
Displacement 1247 cc
Bore x Stroke in. / in.105 mm / 72 mm
Engine Torque J1349
Engine Torque 3 ft. lbs. @ rpm116 Nm @ 6500 rpm
Fuel System 4 Electronic Sequential Port Fuel Injection (ESPFI)Electronic Sequential Port Fuel Injection (ESPFI)
Compression Ratio 11.5:1
Primary Drive Gear, 64/117 ratioGear, 64/117 ratio
Fuel Economy
Fuel Economy City 5 6.9 l/100km
Fuel Economy Hwy 5 5.6 l/100km
Gear Ratio (Overall)
1st 11.749
2nd 7.896
3rd 6.321
4th 5.456
5th 4.888
6th

WHEELS / TIRES
Wheels
Front 6 Black, 5-Spoke Cast AluminumBlack, 5-Spoke Cast Aluminum
Wheel Option 6
Rear 6 Black, 5-Spoke Cast AluminumBlack, 5-Spoke Cast Aluminum
Tire Size
Front
Rear

ELECTRICAL
Instruments Electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, tachometerElectronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, tachometer
Indicator Lamps 7 High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system (optional), coolant temperature, low fuel warningsHigh beam, neutral, low oil pressure, turn signals, engine diagnostics, security system (optional), coolant temperature, low fuel warnings

CHASSIS
Brakes 4-piston front and rear4-piston front and rear
Parking Brake
Lean Angle
Exhaust System Satin chrome, dual side exhaust systemSatin chrome, dual side exhaust system

COLOR OPTIONS
Vivid Black
Brilliant Silver Pearl
Chrome Yellow
White Hot DenimVivid Black
Brilliant Silver Pearl
Chrome Yellow
White Hot Denim

1 Measurement reflects 180 lb. (81.7 kg) operator weight.
2 Recommended 91 octane or higher fuel (R+M)/2.
3 Values shown are nominal. Performance may vary by country and region.
4 Standard and optional fuel systems may vary by country.
5 Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
6 Standard and optional wheels may vary by country and region.
7 North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
8 See motorcycle owner's manual for complete details.

Vehicles depicted may differ from vehicles manufactured and delivered. Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered. All product descriptions (including depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication. Although such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed. Harley-Davidson may make changes at any time to prices and specifications, and may change or discontinue models, without notice and without incurring any obligation. Attention: Vehicles in the configurations shown and many of the accessories described in this catalog may not be available for sale or use in some locations. Please check with your dealer for complete product details and the latest information. All models feature 6-speed transmission (VRSC™ models and Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.

Thursday, February 24, 2011

2011 Harley Davidson VRSCDX Night Rod Special

2011 Harley Davidson VRSCDX Night Rod Special Review

2011 Harley Davidson VRSCDX Night Rod Special is one motorcycle issued by the manufacturer Harley Davidson with VRSC edition which supported the body design is comfortable to use. 2011 Harley Davidson VRSCDX Night Rod Special has a capacity of 1250 cc engine with a ratio of bore x stroke 105 mm x 72 mm. For the type of engine that is Engine3 Liquid-cooled, Revolution®, 60° V-Twin Valves Overhead cam, 4 valves per cylinder, solid tappet with shim-under-bucket lash adjustment.

2011 Harley Davidson VRSCDX Night Rod Special2011 Harley Davidson VRSCDX Night Rod Special 1

2011 Harley Davidson VRSCDX Night Rod Special2011 Harley Davidson VRSCDX Night Rod Special 2

2011 Harley Davidson VRSCDX Night Rod Special2011 Harley Davidson VRSCDX Night Rod Special 3

2011 Harley Davidson VRSCDX Night Rod Special2011 Harley Davidson VRSCDX Night Rod Special 4

2011 Harley Davidson VRSCDX Night Rod Special2011 Harley Davidson VRSCDX Night Rod Special 5

2011 Harley Davidson VRSCDX Night Rod Special - USA Specifications
U.S. MSRP - Color Option $16,699. Two-Tone Option $16,999

DIMENSIONS
Length 94.4 in. (2398 mm)
Overall Width 34.6 in. (879 mm)
Overall Height 45.5 in. (1156 mm)
Seat Height:
• Laden2 25.2 in. (640 mm)
• Unladen 26.3 in. (668 mm)
Ground Clearance 4.2 in. (107 mm)
Rake (steering head) 34°
Fork Angle 36°
Trail 4.5 in. (114 mm)
Wheelbase 67.2 in. (1707 mm)
Tires (Michelin® Scorcher™ “11” front and rear):
• Front – Scorcher™ “11” 120/70ZR-19 60W
• Rear – Scorcher™ “11” 240/40R-18 79V
Fuel Capacity 5.0 gal. (18.9 L) (warning light at approximately 0.5 gal.)
Oil Capacity (w/filter) 5.0 qts. (4.7 L)
Coolant Capacity 2.5 qts. (2.4 L)
Weight:
• As Shipped 643 lbs. (292.0 kg)
• In Running Order 676 lbs. (307.0 kg)
• Gross Vehicle Weight Rating 1075 lbs. (488.0 kg)
• Gross Axle Weight Rating
• Front 377 lbs. (171.0 kg)
• Rear 698 lbs. (317.0 kg)

ENGINE
Engine3 Liquid-cooled, Revolution®, 60° V-Twin
Valves Overhead cam, 4 valves per cylinder, solid tappet with shim-under-bucket lash adjustment
Bore x Stroke 4.134 in. x 2.835 in. (105 mm x 72 mm)
Displacement 76.28 cu. in. (1250 cc)
Compression Ratio 11.5:1
Fuel System3 Electronic Sequential Port Fuel Injection (ESPFI)
Air Cleaner Down draft intake
Lubrication System Wet-sump, integrated with
powertrain crankcase

DRIVETRAIN
Primary Drive Gear, 117/64 ratio
Final Drive Belt, 72/28 ratio
Clutch 9-plate, wet, A&S (Assist & Slip)
Transmission 5-speed
U.S. Gear Ratios (overall):
• 1st 11.752
• 2nd 7.898
• 3rd 6.322
• 4th 5.459
• 5th 4.899

CHASSIS
Frame Steel perimeter upper frame with hydroformed main rails and bolt-on lower frame rails; MIG welded
Swingarm Polished, one-piece cast aluminum with black powder-coat finish
Front Forks Wide, 49 mm custom
Rear Shocks Preload adjustable
Wheels4: Black, Slotted Disc Cast Aluminum
• Front 19 in. x 3 in. (483 mm x 76 mm)
• Rear 18 in. x 8 in. (457 mm x 203 mm)

Brakes:
• Caliper Type 4-piston front and rear
• Rotor Type (diameter x width): Patented, one-piece floating rotor (front), uniform expansion rotor (rear)
• Front (dual) 11.81 in. x .2 in. (300 mm x 5 mm)
• Rear 11.81 in. x .28 in. (300 mm x 7 mm)
• ABS Option Available
Suspension Travel:
• Front 4 in. (102 mm)
• Rear 2.9 in. (74 mm)

PERFORMANCE
Engine Torque5 (per SAE J1349):
• North America 85 ft. lbs. @ 7000 RPM (115 Nm @ 7000 RPM)
Lean Angle (per SAE J1168):
• Right 32°
• Left 32°
Fuel Economy6
(EPA urban/highway test)
34/42 mpg (6.92/5.60 L/100 km)

ELECTRIC
Battery (per Battery Council International Rating)
Sealed, maintenance-free, 12V, 19-amp/hour, 270 cca
Charging Three-Phase, 38-amp system (439W @ 13V, 2000 RPM, 489W max power @ 13V)
Starting 0.08 kW electric with direct drive starter motor engagement
Lights (as per country regulation):
• Headlamp (quartz halogen) 55-watt low beam, 60-watt high beam
• Tail/Stop Lights 8W/28W reflector optics (5W/21W)
• Turn Signal Lights 28W (21W) self-canceling
• Indicator Lamps High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system7 (optional), coolant temperature, low fuel warnings

COLOR OPTIONS
Brilliant Silver Pearl / Black Racing Stripe with Ghost Flames
Chrome Yellow / Black Racing Stripe with Ghost Flames
Sedona Orange / Black Racing Stripe with Ghost Flames
Brilliant Silver Pearl / Black Racing Stripe with Ghost Flames

WARRANTY
Warranty8 24 months (unlimited mileage)
Service Interval First 1,000 miles (1,600 km), every 5,000 miles (8,000 km) thereafter

1 Vehicles depicted may differ from vehicles manufactured and delivered.
Specifications and prices listed may differ from specifications and prices of
vehicles manufactured and delivered. All product descriptions (including depictions,
specifications, dimensions, measurements, ratings and competitive comparisons) are
based on available information at the time of publication. Although such descriptions
are believed correct, errors and changes can occur and complete accuracy cannot
be guaranteed. Harley-Davidson may make changes at any time to prices and
specifications, and may change or discontinue models, without notice and without
incurring any obligation. Attention: Vehicles in the configurations shown and many
of the accessories described in this catalog may not be available for sale or use in
some locations. Please check with your dealer for complete product details and the
latest information. All models feature 6-speed transmission (VRSC™ models and
Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate clutch
with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.
2 Measurement reflects 180 lb. (81.7 kg) operator weight.
3 Recommended 91 octane or higher fuel (R+M)/2.
4 Standard and optional wheels may vary by country and region.
5 Values shown are nominal. Performance may vary by country and region.
6 Estimated from fuel economy tests on a sample motorcycle from the corresponding
family conducted by Harley-Davidson under ideal laboratory conditions. Not all
motorcycle models undergo fuel economy testing. Fuel economy and mileage may
vary among motorcycle models within a family. Your mileage may vary depending
on your personal riding habits, weather conditions, trip length, vehicle condition and
vehicle configuration and other conditions. Break-in mileage may vary.
7 North America security system includes immobilizer; outside North America the
security system includes immobilizer and siren.
8 See motorcycle owner’s manual for complete details.


2011 Harley Davidson VRSCDX Night Rod Special - Canada Specifications
Canadian MSRP - See your local retailer for pricing information.

DIMENSIONS Metric Units
Length 2460 mm
Seat Height
Laden 1
Unladen 1 690 mm
Ground Clearance 140 mm
Rake Steering Head
Trail 114 mm
Wheelbase 1715 mm
Fuel Capacity 18.9 L
Oil Capacity 4.7 L
Weight
Dry Weight 292 kg
Running Order 307 kg
Luggage Capacity
Volume
Weight

POWERTRAIN
Engine 2 Liquid-cooled, Revolution®, 60° V-TwinLiquid-cooled, Revolution®, 60° V-Twin
Displacement 1247 cc
Bore x Stroke in. / in.105 mm / 72 mm
Engine Torque J1349
Engine Torque 3 ft. lbs. @ rpm116 Nm @ 7250 rpm
Fuel System 4 Electronic Sequential Port Fuel Injection (ESPFI)Electronic Sequential Port Fuel Injection (ESPFI)
Compression Ratio 11.5:1
Primary Drive Gear, 64/117 ratioGear, 64/117 ratio
Fuel Economy
Fuel Economy City 5 6.9 l/100km
Fuel Economy Hwy 5 5.6 l/100km
Gear Ratio (Overall)
1st 11.749
2nd 7.896
3rd 6.321
4th 5.456
5th 4.888
6th

WHEELS / TIRES
Wheels
Front 6 Black, Slotted Disc Cast AluminumBlack, Slotted Disc Cast Aluminum
Wheel Option 6
Rear 6 Black, Slotted Disc Cast AluminumBlack, Slotted Disc Cast Aluminum
Tire Size
Front
Rear

ELECTRICAL
Instruments Electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, tachometerElectronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, tachometer
Indicator Lamps 7 High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system (optional), coolant temperature, low fuel warningsHigh beam, neutral, low oil pressure, turn signals, engine diagnostics, security system (optional), coolant temperature, low fuel warnings

CHASSIS
Brakes 4-piston front and rear4-piston front and rear
Parking Brake
Lean Angle
Exhaust System Straight-shot exhaust with brushed finish dual mufflers; black end caps and heat shieldStraight-shot exhaust with brushed finish dual mufflers; black end caps and heat shield

COLOR OPTIONS
Brilliant Silver Pearl / Black Racing Stripe with Ghost Flames
Chrome Yellow / Black Racing Stripe with Ghost Flames
Sedona Orange / Black Racing Stripe with Ghost Flames
Brilliant Silver Pearl / Black Racing Stripe with Ghost Flames

1 Measurement reflects 180 lb. (81.7 kg) operator weight.
2 Recommended 91 octane or higher fuel (R+M)/2.
3 Values shown are nominal. Performance may vary by country and region.
4 Standard and optional fuel systems may vary by country.
5 Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
6 Standard and optional wheels may vary by country and region.
7 North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
8 See motorcycle owner's manual for complete details.


Vehicles depicted may differ from vehicles manufactured and delivered. Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered. All product descriptions (including depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication. Although such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed. Harley-Davidson may make changes at any time to prices and specifications, and may change or discontinue models, without notice and without incurring any obligation. Attention: Vehicles in the configurations shown and many of the accessories described in this catalog may not be available for sale or use in some locations. Please check with your dealer for complete product details and the latest information. All models feature 6-speed transmission (VRSC™ models and Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.

Wednesday, February 23, 2011

2011 Harley Davidson FLHXXX Street Glide Trike

2011 Harley Davidson FLHXXX Street Glide Trike Review

2011 Harley Davidson FLHXXX Street Glide Trike is one motorcycle issued by the manufacturer Harley Davidson with Tri Glide (Motorcycle Trike) edition which supported the body design is comfortable to use. 2011 Harley Davidson FLHXXX Street Glide Trike has a capacity of 1690 cc engine with a ratio of bore x stroke 98.425 mm x 111.125 mm. For the type of engine is Engine4 Air-cooled, Twin Cam 103™, Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters: two valves per cylinder.

2011 Harley Davidson FLHXXX Street Glide Trike2011 Harley Davidson FLHXXX Street Glide Trike 1

2011 Harley Davidson FLHXXX Street Glide Trike2011 Harley Davidson FLHXXX Street Glide Trike 2

2011 Harley Davidson FLHXXX Street Glide Trike2011 Harley Davidson FLHXXX Street Glide Trike 3

2011 Harley Davidson FLHXXX Street Glide Trike2011 Harley Davidson FLHXXX Street Glide Trike 4

2011 Harley Davidson FLHXXX Street Glide Trike2011 Harley Davidson FLHXXX Street Glide Trike 5

2011
Harley Davidson FLHXXX Street Glide Trike - USA Specifications
U.S. MSRP - Vivid Black $27,499. Color Option $28,299

DIMENSIONS
Length 105.8 in. (2687 mm)
Overall Width 54.7 in. (1389 mm)
Overall Height 52.9 in. (1344 mm)
Seat Height:
• Laden2 26.8 in. (679 mm)
• Unladen 28.4 in. (721 mm)
Ground Clearance 4.7 in. (119 mm)
Rake (steering head) 26°
Fork Angle 32°
Trail 3.9 in. (100 mm)
Wheelbase 66.6 in. (1692 mm)
Tires (Dunlop® Harley-Davidson Series, bias blackwall front and radial blackwall rear):
• Front – D402F MT90B16 72H
• Rear – Signature P205/65R15
Fuel Capacity 6.0 gal. (22.7 L)
(warning light at approximately 1.0 gal.)
Oil Capacity (w/filter) 4.0 qts. (3.8 L)
Transmission Capacity 1.0 qts.
Primary Chain
Case Capacity3 1.4 qts.
Weight:
• As Shipped 1091 lbs. (494.9 kg)
• In Running Order 1124 lbs. (509.8 kg)
• Gross Vehicle Weight Rating 1700 lbs. (771.1 kg)
• Gross Axle Weight Rating:
• Front 500 lbs. (226.8 kg)
• Rear 1200 lbs. (544.3 kg)
• Luggage Capacity:
• Volume (cu. ft.) 4.4 cu. ft. (.1 m)
• Weight (lbs.)50 lbs. (22.7 kg)

ENGINE
Engine4 Air-cooled, Twin Cam 103™
Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters: two valves per cylinder
Bore x Stroke 3.875 in. x 4.375 in. (98.425 mm x 111.125 mm)
Displacement 103 cu. in. (1690 cc)
Compression Ratio 9.6:1
Fuel System4 Electronic Sequential Port Fuel Injection (ESPFI)
Air Cleaner Paper, washable
Lubrication System Pressurized, dry-sump with oil cooler

DRIVETRAIN
Primary Drive Chain, 34/46 ratio
Final Drive Belt, 30/70 ratio
Clutch Multi-plate, wet
Transmission 6-Speed Cruise Drive®
U.S. Gear Ratios (overall):
• 1st 10.537
• 2nd 7.303
• 3rd 5.425
• 4th 4.393
• 5th 3.742
• 6th 3.157

CHASSIS
Frame Mild steel, square-section backbone with twin downtubes
Swingarm Mild steel, rectangular tube sections with plate junctions; MIG welded
Front Forks 41.3 mm telescopic, triple-circuit damping
Rear Shocks Air-adjustable
Wheels5: Black, 7-spoke Cast Aluminum
• Front 16 in. x 3 in. (406 mm x 76 mm)
• Rear 15 in. x 5.5 in. (381 mm x 140 mm)

Brakes:
• Caliper Type 32 mm, 4 piston fixed front, 31.75 mm single piston floating rear
• Rotor Type (diameter x width): Patented fixed front rotor, dual fixed rear rotors
• Front (dual) 11.81 in. x .2 in. (300 mm x 5 mm)
• Rear 9 in. x .24 in. (228.6 mm x 6 mm)

Suspension Travel:
• Front Wheel 4.61 in. (117 mm)
• Rear Wheel 2.99 in. (76 mm)
Parking Brake Lever actuated dual parking brake

PERFORMANCE
Engine Torque6 (per SAE J1349):
• North America 101 ft. lbs. @ 3500 RPM (137 Nm @ 3500 RPM)
Fuel Economy7
(EPA urban/highway test)
33/48 mpg (7.10/4.90 L/100 km)

ELECTRIC
Battery (per Battery Council International Rating)
Sealed, maintenance-free, 12V, 28-amp/hour, 370 cca
Charging Three-phase, 50-amp system (585W @ 13V, 2000 RPM, 650W max power @ 13V)
Starting 1.2 kW electric with solenoid shift starter motor engagement
Lights (as per country regulation):
• Headlamp (quartz halogen) 55-watt low beam, 60-watt high beam
• Tail/Stop Lights Two 8W/28W (5W/21W)
• Turn Signal Lights 28W (21W) self-canceling. Rear integrated into Tail\Stop lamps.
• Indicator Lamps - High Beam, running lights, front fender running lights, directional light bar, low
oil pressure, engine diagnostics, cruise control, speakers, accessory, security system8 (optional), 6 speed, low fuel warning, reverse enabled
Reverse Gear Electric reverse actuated by handlebar mounted hand controls

COLOR OPTIONS
Vivid Black
Sedona Orange

WARRANTY
Warranty9 24 months (unlimited mileage)
Service Interval First 1,000 miles (1,600 km), every 5,000 miles (8,000 km) thereafter

1 Vehicles depicted may differ from vehicles manufactured and delivered.
Specifications and prices listed may differ from specifications and prices
of vehicles manufactured and delivered. All product descriptions (including
depictions, specifications, dimensions, measurements, ratings and competitive
comparisons) are based on available information at the time of publication.
Although such descriptions are believed correct, errors and changes can
occur and complete accuracy cannot be guaranteed. Harley-Davidson may
make changes at any time to prices and specifications, and may change
or discontinue models, without notice and without incurring any obligation.
Attention: Vehicles in the configurations shown and many of the accessories
described in this catalog may not be available for sale or use in some locations.
Please check with your dealer for complete product details and the latest
information. All models feature 6-speed transmission (VRSC™ models and
Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate
clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.
2 Measurement reflects 180 lb. (81.7 kg) operator weight.
3 Primary case oil fill is 45 oz. or as needed to fill to bottom of diaphragm.
4 Recommended 91 octane or higher fuel (R+M)/2.
5 Standard and optional wheels may vary by country and region.
6 Values shown are nominal. Performance may vary by country and region.
7 Estimated from fuel economy tests on a sample motorcycle from the
corresponding family conducted by Harley-Davidson under ideal laboratory
conditions. Not all motorcycle models undergo fuel economy testing. Fuel
economy and mileage may vary among motorcycle models within a family. Your
mileage may vary depending on your personal riding habits, weather conditions,
trip length, vehicle condition and vehicle configuration and other conditions.
Break-in mileage may vary.
8 North America security system includes immobilizer; outside North America the
security system includes immobilizer and siren.
9 See motorcycle owner’s manual for complete details.

Tuesday, February 22, 2011

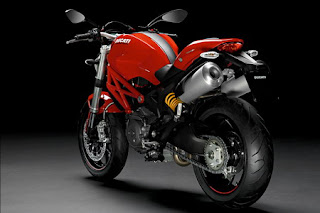

Ducati Monster 796 Edition

Ducati Monster 796 is one monster edition issued by Ducati, motorcycle body design is not much different from previous editions degan on upsitdown with front suspension uses double disc and on the back using a single swing arm with a brake disc. To exhaust, Ducati Monster 796 is mounted using a double under the back seat. Do not miss machine guards worn under the tank with the pipes that make a handsome and muscular design of this Ducati.
2011 Ducati Monster 796Motorcycle 2011 Ducati Monster 796 Edition Test
2011 Ducati Monster 796Motorcycle 2011 Ducati Monster 796 Edition Left Rear
2011 Ducati Monster 796Motorcycle 2011 Ducati Monster 796 Edition Right Side

Motor Sport Wallpaper





2010 Honda CBR Leyla

Monday, February 21, 2011

2011 Ducati Desmosedici GP11 Photo Gallery

2011 Ducati Desmosedici GP11 Action View2011 Ducati Desmosedici GP11 Pictures2011 Ducati Desmosedici GP11 Motorcycles2011 Ducati Desmosedici GP11 Images2011 Ducati Desmosedici GP11 Official MotoGP2011 Ducati Desmosedici GP11 Valentino Rossi Photos

2011 Honda CBR1000RR C-ABS

2011 Honda CBR1000RR C-ABS Review

2011 Honda CBR1000RR C-ABS is one motorcycle issued by the manufacturer Honda with sport edition which supported the body design is comfortable to use. 2011 Honda CBR1000RR C-ABS has a capacity of 999 cc engine with a ratio of bore x stroke 76mm x 55.1mm. For the type of engine is 999cc liquid-cooled inline four-cylinder.


2011 Honda CBR1000RR C-ABS2011 Honda CBR1000RR C-ABS 1

2011 Honda CBR1000RR C-ABS2011 Honda CBR1000RR C-ABS 2

2011 Honda CBR1000RR C-ABS2011 Honda CBR1000RR C-ABS 3

2011 Honda CBR1000RR C-ABS2011 Honda CBR1000RR C-ABS 4

2011 Honda CBR1000RR C-ABS2011 Honda CBR1000RR C-ABS 5


2011 Honda CBR1000RR - United States of America Specifications

USA MSRP - $TBA USD

Model: CBR1000RR / CBR1000RR C-ABS

Engine Type: 999cc liquid-cooled inline four-cylinder
Bore and Stroke: 76mm x 55.1mm
Compression ratio: 12.3:1
Valve Train: DOHC; four valves per cylinder
Induction: Dual Stage Fuel Injection (DSFI)
Ignition: Computer-controlled digital transistorized with 3-D mapping
Transmission: Close-ratio six-speed
Final Drive: #530 O-ring-sealed chain

Suspension
Front: 43mm inverted HMAS cartridge fork with spring preload, rebound and compression damping adjustability; 4.3 inches travel
Rear: Unit Pro-Link HMAS single shock with spring preload, rebound and compression damping adjustability; 5.4 inches travel

Brakes
Front: Dual radial-mounted four-piston calipers with full-floating 320mm discs
Rear: Single 220mm disc;
Optional Honda Electronic Combined ABS

Tires
Front: 120/70ZR-17 radial
Rear: 190/50ZR-17 radial
Wheelbase: 55.4 inches
Rake (Caster Angle): 23.3°
Trail: 96.2mm (3.8 inches)
Seat Height: 32.3 inches
Fuel Capacity: 4.7 gallons, including 1.06-gallon reserve
Estimated Fuel Economy: 37 mpg

Colors:
CBR1000RR: Repsol Edition, Red/Black, Black
CBR1000RR C-ABS: Red/Black

Curb Weight*: 439 pounds (CBR1000RR) / 462 pounds (CBR1000RR C-ABS)

*Includes all standard equipment, required fluids and full tank of fuel-ready to ride.

Honda's fuel-economy estimates are based on EPA exhaust emission measurement test procedures and are intended for comparison purposes only. Your actual mileage will vary depending on how you ride; how you maintain your vehicle; weather; road conditions; tire pressure; installation of accessories; cargo, rider and passenger weight; and other factors.

Meets current EPA standards.

Models sold in California meet current CARB standards and may differ slightly due to emissions equipment.

2011 Honda CBR1000RR - Canadian Specifications
Canada MSRP - $TBA CDN

Engine Type 999cc liquid-cooled inline four-cylinder
Bore And Stroke 76mm x 55.1mm
Induction Dual Stage Fuel Injection (DSFI) Dual-stage fuel injection ensures spot-on throttle response at all revs with superb low- and high-rpm metering and cleaner burning.
Ignition Computer-controlled digital transistorized with three-dimensional mapping Two 3-D fuel-injection maps per cylinder and dual 3-D ignition maps per cylinder pair create the ideal fuel mixture and spark-advance settings for unparalleled rideability.
Compression Ratio 12.3:1
Valve Train DOHC; four valves per cylinder

DRIVE TRAIN
Transmission Close-ratio six-speed The CBR?s patented slipper clutch is the perfect feature for track days, helping to minimize rear-wheel hop under aggressive downshifting.
Final Drive #530 O-ring-sealed chain

CHASSIS / SUSPENSION / BRAKES
Front Suspension 43mm inverted HMAS cartridge fork with spring preload, rebound- and compression-damping adjustability; 4.3 inches travel
Rear Suspension Unit Pro-Link® HMAS single shock with spring preload rebound and compression-damping adjustability; 5.4 inches travel The CBR's exclusive MotoGP-developed Unit Pro-Link rear suspension and featherweight aluminum frame combine to deliver ultra-responsive, scalpel-sharp cornering.
Front Brake Dual radial-mounted four-piston calipers with full-floating 320mm discs With its all-new, super-trick electronic Combined ABS, the CBR boasts the most advanced braking system on a production supersport machine.
Rear Brake Single 220mm disc With its all-new, super-trick electronic Combined ABS, the CBR boasts the most advanced braking system on a production supersport machine.
Front Tire 1207/70ZR-17 radial
Rear Tire 190/50ZR-17 radial

DIMENSIONS
Rake 23.3 degrees (Caster Angle)
Trail 96.2mm (3.8 inches)
Wheelbase 55.4 inches
Seat Height 32.3 inches
Curb Weight 439 pounds (Includes all standard equipment, required fluids and full tank of fuel--ready to ride.) At 439 pounds wet (i.e., full tank of fuel, engine oil, etc.), the CBR weighs in as one of the lightest open-classers out there.
Fuel Capacity 4.7 gallons, including 1.06-gallon reserve
Miles Per Gallon 37 MPG*

OTHER
Model Id CBR1000RR
Emissions Meets current EPA standards. California version meets current California Air Resources Board (CARB) standards.
Available Colors Red/Black, Black, Blue/White/Orange/Red

FACTORY WARRANTY INFORMATION
One Year Transferable, unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan.

Sunday, February 20, 2011

Honda GP 500cc 2013

2011 Honda CBR600RR

2011 Honda CBR600RR Review

2011 Honda CBR600RR is one motorcycle issued by the manufacturer Honda with sport edition which supported the body design is comfortable to use. 2011 Honda CBR600RR has a capacity of 599 cc engine with a ratio of bore x stroke 67mm x 42.5mm. For the type of engine is 599cc liquid-cooled inline four-cylinder.

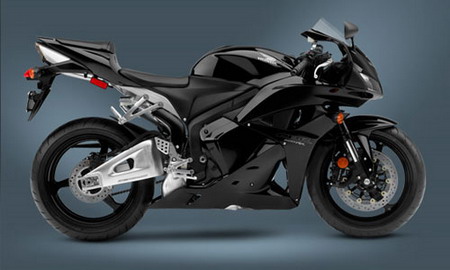

2011 Honda CBR600RR2011 Honda CBR600RR 1

2011 Honda CBR600RR2011 Honda CBR600RR 2

2011 Honda CBR600RR2011 Honda CBR600RR 3

2011 Honda CBR600RR2011 Honda CBR600RR 4

2011 Honda CBR600RR2011 Honda CBR600RR 5


2011 Honda CBR600RR - United States of America Specifications
USA MSRP - $TBA USD

Model: CBR600RR / CBR600RR C-ABS
Engine Type: 599cc liquid-cooled inline four-cylinder
Bore and Stroke: 67mm x 42.5mm
Compression ratio: 12.2:1
Valve Train: DOHC; four valves per cylinder
Induction: Dual Stage Fuel Injection (DSFI) with 40mm throttle bodies, Denso 12-hole injectors
Ignition: Computer-controlled digital transistorized with 3-D mapping
Transmission: Close-ratio six-speed
Final Drive: #525 O-ring chain

Suspension
Front: 41mm inverted HMAS cartridge fork with spring preload, rebound and compression damping adjustability; 4.7 inches travel
Rear: Unit Pro-Link HMAS single shock with spring preload, rebound and compression damping adjustability; 5.1 inches travel

Brakes
Front: Dual radial-mounted four-piston calipers with 310mm discs
Rear: Single 220mm disc;
Optional Honda Combined ABS
Tires
Front: 120/70ZR-17 radial
Rear: 180/55ZR-17 radial
Wheelbase: 53.9 inches
Rake: 23.5°
Trail: 97.7mm (3.9 inches)
Seat Height: 32.3 inches
Fuel Capacity: 4.8 gallons, including 0.9-gallon reserve
Estimated Fuel Economy: 41 mpg

Colors:
CBR600RR: Red/Black, Black
CBR600RR C-ABS: Black

Curb Weight*: 410 pounds (CBR600RR) / 432 pounds (CBR600 C-ABS)

*Includes all standard equipment, required fluids and full tank of fuel-ready to ride.

Honda's fuel economy estimates are based on EPA exhaust emission measurement test procedures and are intended for comparison purposes only. Your actual mileage will vary depending on how you ride, how you maintain your vehicle, weather, road conditions, tire pressure, installation of accessories, cargo, rider and passenger weight, and other factors.

Meets current EPA standards.

Models sold in California meet current CARB standardsand may differ slightly due to emissions equipment.


2011 Honda CBR600RR - Canadian Specifications
Canada MSRP - $TBA CDN
Engine Type Liquid-cooled inline-four
Displacement 599 cc
Bore & Stroke 67 mm x 42.5 mm
Compression Ratio 12.2:1
Valve Train Chain-driven DOHC, 4 valves per cylinder
Fuel Delivery Dual Stage Fuel Injection
Transmission Close-ratio six-speed
Final Drive #525 O-ring-sealed chain
Front Suspension 41 mm inverted HMAS cartridge fork with full adjustability; 110 mm (4.3 in) travel
Rear Suspension Unit Pro-Link HMAS single shock with full adjustability; 129 mm (5.1 in.) travel
Tires 120/70ZR - 17 radial front; 180/55ZR - 17 radial rear
Brakes Front dual 310 mm discs with radial-mounted four-piston calipers; rear single 220 mm disc with single-piston caliper. Electronically Controlled Combined ABS
Seat Height 820 mm (32.3 in.)
Seating capacity Two
Wheelbase 1,370 mm (53.9 in.)
Curb Weight 196 kg (432 lb) including required fluids and full tank of gas - ready to ride
Fuel Capacity 18 litres
Colour Victory Red/Black

Saturday, February 19, 2011

2011 Harley Davidson FXCWC Rocker C

2011 Harley Davidson FXCWC Rocker C Review

2011 Harley Davidson FXCWC Rocker C is one motorcycle issued by the manufacturer Harley Davidson with touring edition which supported the body design is comfortable to use. 2011 Harley Davidson FXCWC Rocker C has a capacity of 1584 cc engine with a ratio of bore x stroke 95.3 mm x 111.3 mm. For the type of engine is engine4 air-cooled, twin cam 96BTM valves pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder.

2011 Harley Davidson FXCWC Rocker C2011 Harley Davidson FXCWC Rocker C 1

2011 Harley Davidson FXCWC Rocker C2011 Harley Davidson FXCWC Rocker C 2

2011 Harley Davidson FXCWC Rocker C2011 Harley Davidson FXCWC Rocker C 3

2011 Harley Davidson FXCWC Rocker C2011 Harley Davidson FXCWC Rocker C 4

2011 Harley Davidson FXCWC Rocker C2011 Harley Davidson FXCWC Rocker C 5

2011
Harley Davidson FXCWC Rocker C - USA Specifications
U.S. MSRP - Vivid Black $19,499 (Deluxe). Solids $19,874 (Deluxe)

DIMENSIONS
Length 95.0 in. (2413 mm)
Overall Width 35.1 in. (892 mm)
Overall Height 46.0 in. (1168 mm)
Seat Height:
• Laden2 25.2 in. (640 mm)
• Unladen 27.4 in. (696 mm)

Ground Clearance 5.1 in. (130.0 mm)
Rake (steering head) 36°
Fork Angle 37°
Trail 6.2 in. (157 mm)
Wheelbase 69.2 in. (1758 mm)
Tires (Dunlop® Harley-Davidson Series, bias blackwall front and radial blackwall rear):
• Front – D408F 90/90-19
• Rear – D407 240/40R18

Fuel Capacity 4.9 gal. (18.5 L) (warning light at approximately 1.0 gal.)
Oil Capacity (w/filter) 3.5 qts. (3.3 L)
Transmission Capacity 1.0 qts.
Primary Chain
Case Capacity3 1.0 qts.
Weight:
• As Shipped 686 lbs. (311.0 kg)
• In Running Order 717 lbs. (325.0 kg)
• Gross Vehicle Weight Rating 1175 lbs. (533.0 kg)
• Gross Axle Weight Rating:
• Front 415 lbs. (188.0 kg)
• Rear 760 lbs. (345.0 kg)

ENGINE
Engine4 Air-cooled, Twin Cam 96BTM Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Bore x Stroke 3.75 in. x 4.38 in. (95.3 mm x 111.3 mm)
Displacement 96 cu. in. (1584 cc)
Compression Ratio 9.2:1
Fuel System4 Electronic Sequential Port Fuel Injection (ESPFI)
Air Cleaner Paper, washable
Lubrication System Pressurized, dry-sump

DRIVETRAIN
Primary Drive Chain, 34/46 ratio
Final Drive Belt, 32/66 ratio
Clutch Multi-plate, wet
Transmission 6-Speed Cruise Drive®
U.S. Gear Ratios (overall):
• 1st 9.311
• 2nd 6.454
• 3rd 4.793
• 4th 3.882
• 5th 3.307
• 6th 2.79

CHASSIS
Frame Mild steel tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded
Swingarm Mild steel, round tube sections, forged junctions; MIG welded
Front Forks 49 mm telescopic
Rear Shocks Hidden, horizontal-mounted, coil-over
Wheels5: Polished, 5-spoke Cast Aluminum
• Front 19 in. x 2.15 in. (483 mm x 55 mm)
• Rear 18 in. x 8 in. (457 mm x 203 mm)
Brakes:
• Caliper Type 4-piston front and 2-piston rear
• Rotor Type (diameter x width): Patented, uniform expansion rotors
• Front 11.5 in. x .2 in. (292 mm x 5 mm)
• Rear 11.5 in. x .23 in. (292 mm x 6 mm)
• Anti-lock Braking System (option) Available
Suspension Travel:
• Front Wheel 5 in. (127 mm)
• Rear Wheel 3.1 in. (79 mm)

PERFORMANCE
Engine Torque6 (per SAE J1349):
• North America 92.2 ft. lbs. @ 3000 RPM (125 Nm @ 3000 RPM)
Lean Angle:
• Right 26.8°
• Left 26.8°
Fuel Economy7
(EPA urban/highway test)
35/54 mpg (6.70/4.40 L/100 km)

ELECTRIC
Battery (per Battery Council International Rating)
Sealed, maintenance-free, 12V, 19-amp/hour, 270 cca
Charging Three-phase, 38-amp system (439W @ 13V, 2000 RPM, 489W max power @ 13V)
Starting 1.2 kW electric with solenoid shift starter motor engagement
Lights (as per country regulation):
• Headlamp (quartz halogen) 55-watt low beam, 60-watt high beam
• Stop/Turn/Tail Lights Integrated LED
• Turn Signal Lights 28W (21W) self-canceling
• Indicator Lamps - High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system8 (optional), 6-speed, low fuel warnings

COLOR OPTIONS
Solids
• Vivid Black Deluxe
• Scarlet Red Deluxe
• Cool Blue Pearl Deluxe
• Black Denim Deluxe

WARRANTY
Warranty9 24 months (unlimited mileage)
Service Interval First 1,000 miles (1,600 km), every 5,000 miles (8,000 km) thereafter

1 Vehicles depicted may differ from vehicles manufactured and delivered.Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered. All product descriptions (including depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication. Although such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed. Harley-Davidson may make changes at any time to prices and specifications, and may change or discontinue models, without notice and without incurring any obligation. Attention: Vehicles in the configurations shown and many of the accessories described in this catalog may not be available for sale or use in some locations. Please check with your dealer for complete product details and the latest information. All models feature 6-speed transmission (VRSC™ models and Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate
clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.
2 Measurement reflects 180 lb. (81.7 kg) operator weight.
3 Primary case oil fill is 32 oz. or as needed to fill to bottom of diaphragm.
4 Recommended 91 octane or higher fuel (R+M)/2.
5 Standard and optional wheels may vary by country and region.
6 Values shown are nominal. Performance may vary by country and region.
7 Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
8 North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
9 See motorcycl owner’s manual for complete details.


2011 Harley Davidson FXCWC Rocker C - Canada Specifications
Canadian MSRP - See your local retailer for pricing information.

DIMENSIONS Metric Units
Length 2415 mm
Seat Height
Laden 1
Unladen 1 700 mm
Ground Clearance 130 mm
Rake Steering Head
Trail 157 mm
Wheelbase 1760 mm
Fuel Capacity 18.5 L
Oil Capacity 3.3 L
Weight
Dry Weight 307 kg
Running Order 320 kg
Luggage Capacity
Volume
Weight

POWERTRAIN
Engine 2 Air-cooled, Twin Cam 96B™Air-cooled, Twin Cam 96B™
Displacement 1584 cc
Bore x Stroke in. / in.95.3 mm / 111.1 mm
Engine Torque J1349
Engine Torque 3 ft. lbs. @ rpm125 Nm @ 3000 rpm
Fuel System 4 Electronic Sequential Port Fuel Injection (ESPFI)Electronic Sequential Port Fuel Injection (ESPFI)
Compression Ratio 9.2:1
Primary Drive Chain, 34/46 ratioChain, 34/46 ratio
Fuel Economy
Fuel Economy City 5 6.72 l/100km
Fuel Economy Hwy 5 4.36 l/100km
Gear Ratio (Overall)
1st 9.31
2nd 6.453
3rd 4.793
4th 3.881
5th 3.306
6th 2.79

WHEELS / TIRES
Wheels
Front 6 Polished, 5-Spoke Cast AluminumPolished 5-Spoke
Wheel Option 6
Rear 6 Polished, 5-Spoke Cast AluminumPolished 5-Spoke
Tire Size
Front
Rear

ELECTRICAL
Instruments Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, 6-speed indicator lightTank-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, 6-speed indicator light
Indicator Lamps 7 High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system (optional), 6-speed, low fuel warningsHigh beam, neutral, low oil pressure, engine diagnostics, turn signals, security system(optional), ABS (optional), 6-speed, low fuel warnings

CHASSIS
Brakes 4-piston front and 2-piston rear4-piston front, 2-piston rear
Parking Brake
Lean Angle
Exhaust System Chrome, staggered shorty exhaust with dual mufflersChrome, staggered shorty exhaust with dual mufflers

COLOR OPTIONS
Vivid Black Deluxe
Scarlet Red Deluxe
Cool Blue Pearl Deluxe
Black Denim DeluxeVivid Black Deluxe
Scarlet Red Deluxe
Cool Blue Pearl Deluxe
Black Denim Deluxe

1 Measurement reflects 180 lb. (81.7 kg) operator weight.
2 Recommended 91 octane or higher fuel (R+M)/2.
3 Values shown are nominal. Performance may vary by country and region.
4 Standard and optional fuel systems may vary by country.
5 Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
6 Standard and optional wheels may vary by country and region.
7 North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
8 See motorcycle owner's manual for complete details.


Vehicles depicted may differ from vehicles manufactured and delivered. Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered. All product descriptions (including depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication. Although such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed. Harley-Davidson may make changes at any time to prices and specifications, and may change or discontinue models, without notice and without incurring any obligation. Attention: Vehicles in the configurations shown and many of the accessories described in this catalog may not be available for sale or use in some locations. Please check with your dealer for complete product details and the latest information. All models feature 6-speed transmission (VRSC™ models and Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.

2011 Harley Davidson FLTRX Road Glide Custom

2011 Harley Davidson FLTRX Road Glide Custom Review

2011 Harley Davidson FLTRX Road Glide Custom is one motorcycle issued by the manufacturer Harley Davidson with touring edition which supported the body design is comfortable to use. 2011 Harley Davidson FLTRX Road Glide Custom uses frame mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded and the brake is used Caliper Type 32 mm, 4-piston fixed front and rear. As for the engine, this motorcycle has a capacity of 1584 cc engine with a ratio of bore x stroke 95 mm x 111 mm. For the type of engine that is Engine4 Air-cooled, Twin Cam 96™,Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder. For capacity engine 1690cc use a engine type Engine4 Air-cooled, Twin Cam 103™,Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder.

2011 Harley Davidson FLTRX Road Glide Custom2011 Harley Davidson FLTRX Road Glide Custom 1

2011 Harley Davidson FLTRX Road Glide Custom2011 Harley Davidson FLTRX Road Glide Custom 2

2011 Harley Davidson FLTRX Road Glide Custom2011 Harley Davidson FLTRX Road Glide Custom 3

2011 Harley Davidson FLTRX Road Glide Custom2011 Harley Davidson FLTRX Road Glide Custom 4

2011 Harley Davidson FLTRX Road Glide Custom2011 Harley Davidson FLTRX Road Glide Custom 5

2011 Harley Davidson FLTRX Road Glide Custom - USA Specifications
U.S. MSRP - Vivid Black $18,999. Solids $19,479

DIMENSIONS
Length 95.0 in. (2413 mm)
Overall Width 35.8 in. (909 mm)
Overall Height 50.0 in. (1270 mm)
Seat Height:
• Laden2 26.1 in. (663 mm)
• Unladen 27.1 in. (688 mm)

Ground Clearance 5.1 in. (130 mm)
Rake (steering head) 26°
Fork Angle 29.2°
Trail 6.7 in. (170 mm)
Wheelbase 63.5 in. (1613 mm)
Tires (Dunlop® Harley-Davidson Series, bias blackwall front and rear):
• Front – D408F BW 130/70B18 63H
• Rear – D407 BW 180/65B16 81H

Fuel Capacity 6.0 gal. (22.7 L) (warning light at approximately 1.0 gal.)
Oil Capacity (w/filter) 4.0 qts. (3.8 L)
Transmission Capacity 1.0 qts.
Primary Chain
Case Capacity3 1.4 qts.
Weight:
• As Shipped 772 lbs. (350.2 kg)
• In Running Order 817 lbs. (370.6 kg)
• Gross Vehicle Weight Rating 1360 lbs. (616.9 kg)
• Gross Axle Weight Rating
• Front 500 lbs. (226.8 kg)
• Rear 927 lbs. (420.5 kg)

ENGINE
Engine4
• PowerPak Option
Air-cooled, Twin Cam 96™
Air-cooled, Twin Cam 103™
Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Bore x Stroke
• PowerPak Option
3.75 in. x 4.38 in. (95 mm x 111 mm)
3.875 in. x 4.38 in. (98 mm x 111 mm)
Displacement
• PowerPak Option
96 cu. in. (1584 cc)
103 cu. in. (1690 cc)
Compression Ratio
• PowerPak Option
9.2:1
9.6:1
Fuel System4 Electronic Sequential Port Fuel Injection (ESPFI)
Air Cleaner Fiberglass, washable
Lubrication System
• PowerPak Option
Pressurized, dry-sump
Pressurized, dry-sump with oil cooler

DRIVETRAIN
Primary Drive Chain, 34/46 ratio
Final Drive Belt, 32/68 ratio
Clutch Multi-plate, wet
Transmission 6-Speed Cruise Drive®
Gear Ratios (overall) (U.S.):
• 1st, 9.593 • 2nd, 6.65 • 3rd, 4.938
• 4th, 4 • 5th, 3.407 • 6th, 2.875

CHASSIS
Frame Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded
Swingarm Mild steel; two-piece drawn and welded section; forged junctions; MIG welded
Front Forks 41.3 mm telescopic, triple circuit damping
Rear Shocks Air-adjustable
Wheels5: Black, Slotted Disc Cast Aluminum
• Front 18 in. x 3.5 in. (457 mm x 89 mm)
• Rear 16 in. x 5 in. (406 mm x 127 mm)
Brakes:
• Caliper Type 32 mm, 4-piston fixed front and rear
• Rotor Type (diameter x width): Patented, fixed rotors
• Front (dual) 11.81 in. x .2 in. (300 mm x 5 mm)
• Rear 11.81 in. x .28 in. (300 mm x 7 mm)
• Anti-lock Braking System (option) Available/Standard with PowerPak
Suspension Travel:
• Front Wheel 4.6 in. (117 mm)
• Rear Wheel 2 in. (51 mm)
Engineered for Sidecar Use Available

PERFORMANCE
Engine Torque6 (per SAE J1349):
• North America 92.6 ft. lbs. @ 3500 RPM (126 Nm @ 3500 RPM)
PowerPak Engine Torque6 (per SAE J1349):
• North America 102 ft. lbs. @ 3500 RPM (138 Nm @ 3500 RPM)
Lean Angle:
• Right 32°
• Left 29°
Fuel Economy7
(EPA urban/highway test)
35/54 mpg (6.70/4.40 L/100 km)

ELECTRIC
Battery (per Battery Council International Rating)
Sealed, maintenance-free, 12V, 28-amp/hour, 370 cca
Charging Three-phase, 50-amp system (585W @ 13V, 2000 RPM, 650W max power @ 13V)
Starting 1.2 kW electric with solenoid shift starter motor engagement
Lights (as per country regulation):
• Headlamp (quartz halogen) 55-watt low beam, 60-watt high beam
• Tail/Stop Lights Two 8W/28W (1.3W/7.2W W)
• Turn Signal Lights 28W (21W) self-canceling
• Indicator Lamps - High beam, running lights, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system8 (optional), 6-speed, low fuel warning, cruise control, ABS
(optional)

COLOR OPTIONS
Solids
• Vivid Black
• Sedona Orange
• Cool Blue Pearl
• Black Denim

WARRANTY
Warranty9 24 months (unlimited mileage)
Service Interval First 1,000 miles (1,600 km), every 5,000 miles (8,000 km) thereafter

1 Vehicles depicted may differ from vehicles manufactured and delivered.
Specifications and prices listed may differ from specifications and prices
of vehicles manufactured and delivered. All product descriptions (including
depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication. Although such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed. Harley-Davidson may make changes at any time to prices and specifications, and may change
or discontinue models, without notice and without incurring any obligation. Attention: Vehicles in the configurations shown and many of the accessories described in this catalog may not be available for sale or use in some locations. Please check with your dealer for complete product details and the latest information. All models feature 6-speed transmission (VRSC™ models and Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate
clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty. 2 Measurement reflects 180 lb. (81.7 kg) operator weight.
3 Primary case oil fill is 45 oz. or as needed to fill to bottom of diaphragm.
4 Recommended 91 octane or higher fuel (R+M)/2.
5 Standard and optional wheels may vary by country and region.
6 Values shown are nominal. Performance may vary by country and region.
7 Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions.
Break-in mileage may vary.
8 North America security system includes immobilizer; outside North America the
security system includes immobilizer and siren. 9 See motorcycle owner’s manual for complete details.


2011 Harley Davidson FLTRX Road Glide Custom - Canada Specifications
Canadian MSRP - See your local retailer for pricing information.

DIMENSIONS Metric Units
Length 2475 mm
Seat Height
Laden 1
Unladen 1 715 mm
Ground Clearance 125 mm
Rake Steering Head
Trail 170 mm
Wheelbase 1630 mm
Fuel Capacity 22.7 L
Oil Capacity 3.8 L
Weight
Dry Weight 367 kg
Running Order 380 kg
Luggage Capacity
Volume
Weight

POWERTRAIN
Engine 2 Air-cooled, Twin Cam 96™Air-cooled, Twin Cam 96™
Displacement 1690 cc
Bore x Stroke in. / in.98.4 mm / 111.1 mm
Engine Torque J1349
Engine Torque 3 ft. lbs. @ rpm135 Nm @ 3250 rpm
Fuel System 4 Electronic Sequential Port Fuel Injection (ESPFI)Electronic Sequential Port Fuel Injection (ESPFI)
Compression Ratio 9.6:1
Primary Drive Chain, 34/46 ratioChain, 34/46 ratio
Fuel Economy
Fuel Economy City 5 6.72 l/100km
Fuel Economy Hwy 5 4.36 l/100km
Gear Ratio (Overall)
1st 9.594
2nd 6.65
3rd 4.939
4th 3.999
5th 3.407
6th 2.875

WHEELS / TIRES
Wheels
Front 6 Black, Slotted Disc Cast AluminumBlack, Slotted Disc Cast Aluminum
Wheel Option 6
Rear 6 Black, Slotted Disc Cast AluminumBlack, Slotted Disc Cast Aluminum
Tire Size
Front
Rear

ELECTRICAL
Instruments Fairing-mounted electronic speedometer with odometer; time-of-day clock on CD player/stereo; dual trip meter; low fuel indicator light and mileage countdown feature; low oil pressure indicator light; engine diagnostics readout; LED indicator lights; 6-speed indicator lightFairing-mounted electronic speedometer with odometer; time-of-day clock on CD player/stereo; dual trip meter; low fuel indicator light and mileage countdown feature; low oil pressure indicator light; engine diagnostics readout; LED indicator lights; 6-speed indicator light
Indicator Lamps 7 High beam, running lights, front fender light, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system (optional), 6-speed, low fuel warning, cruise control (optional), ABS (optional)High beam, running lights, front fender light, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system (optional), 6-speed, low fuel warning, cruise control (optional), ABS (optional)

CHASSIS
Brakes 32 mm, 4-piston fixed front and rear32 mm, 4-piston fixed front and rear
Parking Brake
Lean Angle
Exhaust System New 2-1-2 exhaustNew 2-1-2 exhaust

COLOR OPTIONS
Vivid Black
Cool Blue Pearl
Sedona Orange
Black Denim

1 Measurement reflects 180 lb. (81.7 kg) operator weight.
2 Recommended 91 octane or higher fuel (R+M)/2.
3 Values shown are nominal. Performance may vary by country and region.
4 Standard and optional fuel systems may vary by country.
5 Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
6 Standard and optional wheels may vary by country and region.
7 North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
8 See motorcycle owner's manual for complete details.

Vehicles depicted may differ from vehicles manufactured and delivered. Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered. All product descriptions (including depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication. Although such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed. Harley-Davidson may make changes at any time to prices and specifications, and may change or discontinue models, without notice and without incurring any obligation. Attention: Vehicles in the configurations shown and many of the accessories described in this catalog may not be available for sale or use in some locations. Please check with your dealer for complete product details and the latest information. All models feature 6-speed transmission (VRSC™ models and Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.

Related Posts Plugin for WordPress, Blogger...
